| Description |
| Intelligent and effective network power protection from entry-level to scalable operation. Ideal UPS for servers, points of sale, routers, switches, hubs and other network devices. |
| Product features |
-
With cold start capability
Provides temporary battery power in the event of a mains power failure.
-
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
-
Environmental mode
A patent-pending operating mode that bypasses unused electrical components under good power conditions to achieve very high operating efficiency without sacrificing any protection.
-
High online performance
Reduces energy costs, generates less heat.
-
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy-to-use navigation keys.
-
Predictive battery replacement date
Dynamically provides the month and year when battery replacement is recommended to help with long-term maintenance planning.
-
Pure sinusoidal battery output
Simulates utility power to provide the highest degree of compatibility for servers with active PFC (power factor correction) and sensitive electronics.
-
Shutting down and restarting the network sequentially
Setting the network shutdown and restart sequence of the connected servers and UPSs.
-
A single group of switched contacts
A single group of contacts that can be controlled separately from the UPS for discreet restart of suspended devices, sequential on/off and non-critical load shutdown.
-

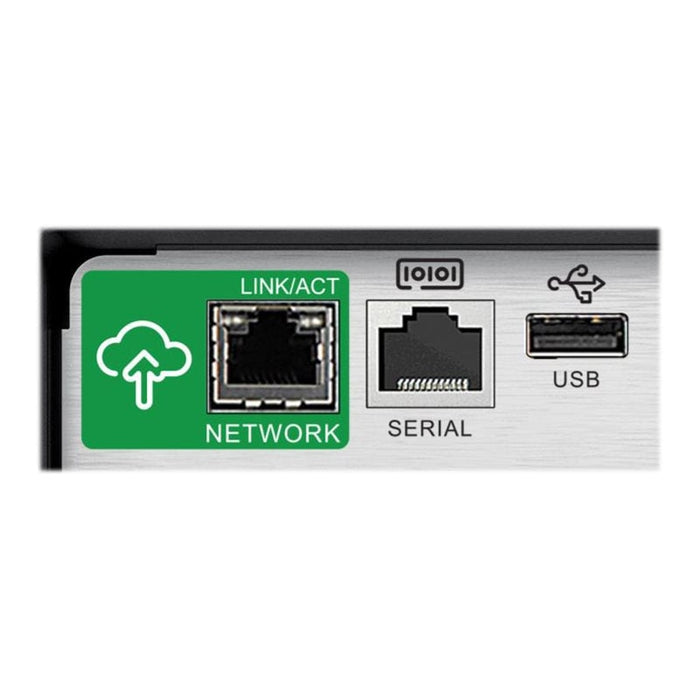

SmartConnect
An innovative, easy-to-use remote monitoring feature that provides automatic notifications, firmware updates and advanced support services.
-
SmartSlot
Configuring UPS capabilities with control cards.
-
Battery charging with temperature compensation
Extends battery life by adjusting charging voltage depending on battery temperature.
|
| Total |
| Device type |
UPS - external |
| Color |
Black |
| Complete with |
APC SmartConnect |
| Charging device |
| UPS technology |
Linear interactive |
| Input voltage |
AC 220/230/240V |
| Input voltage swing |
AC 160 - 286 V |
| Input voltage swing (adjustable) |
AC 151 - 302 V |
| Provided frequency |
50/60Hz ±3Hz |
| Required frequency |
50/60Hz ±3Hz |
| Input connectors |
1 x IEC 60320 C20 power supply |

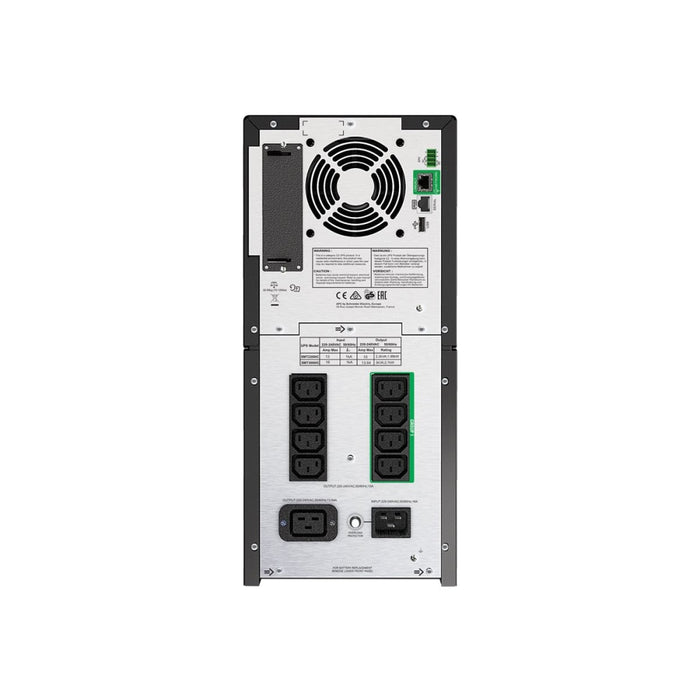

| Details of output connectors |
8 x power supply IEC 60320 C13
2 x IEC jumper
1 x power supply IEC 60320 C19 |
| Output voltage |
AC 220/230/240 V ±5% - 50/60 Hz |
| Power supply |
1980 Watt / 2200 VA |
| Output waveform |
Blue waves |
| Surge suppression |
Yes |
| Surge energy rating |
365 joules |
| Circuit protection |
Circuit breaker |
| Battery |
| Quantity |
1 |
| Technology |
Lead-acid |
| Uptime (up to) |
8.7 min at full load
25 min at half load |
| Time to reload |
3 hours |
| Transfer time |
6 ms |
| Functions |
Maintenance free, sealed, leak proof |
| Network |
| Remote control interface |
RS-232, USB |
| Extension / Connectivity |
| Interfaces |
1 x control (RS-232)
1 x USB
1 x EPO (Emergency Power Off) |
| Expansion slots |
1 (Total) / 1 (Free) x SmartSlot |
| Others |
| Cables included |
Serial cable - external
USB cable - external |
| Functions |
Audible alarm, emergency power off, LCD display, automatic voltage regulation (AVR), cold start function, automatic self-test, failure notification, hot-swappable batteries, energy meter |
| Appropriate standards |
CSA, UL 1778, VDE, IEC 62040-2, RoHS, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
| Software/System Requirements |
| Software included |
APC PowerChute Business Edition |
| Manufacturer's warranty |
| Service and maintenance |
Limited warranty - replacement or repair - 3 years
Limited warranty - batteries - 2 years |
| Environmental parameters |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
40 °C |
| Operating humidity range |
0 - 95% |
| Sound emission |
45 dBA |
| Dimensions and weight |
| Width |
19.7 cm |
| Depth |
54.4 cm |
| Height |
43.5 cm |
| Weight |
48.8 kg |
| Dimensions and weight (shipping) |
| Delivery width |
38.1 cm |
| Shipping depth |
76.2 cm |
| Shipping height |
69.9 cm |
| Shipping Weight |
61.9 kg |
