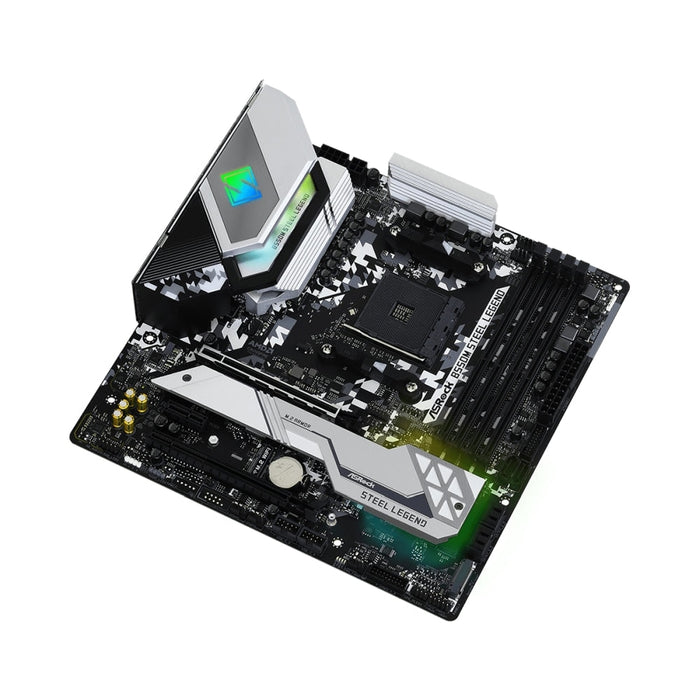

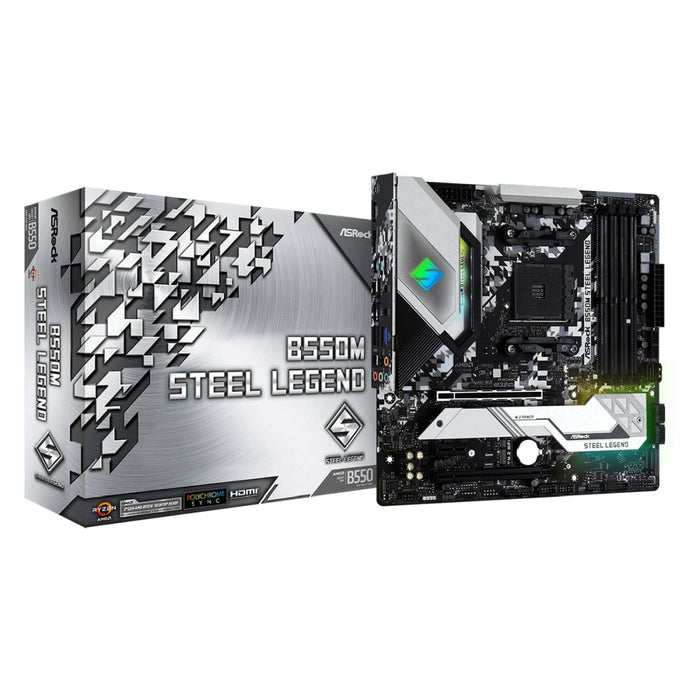

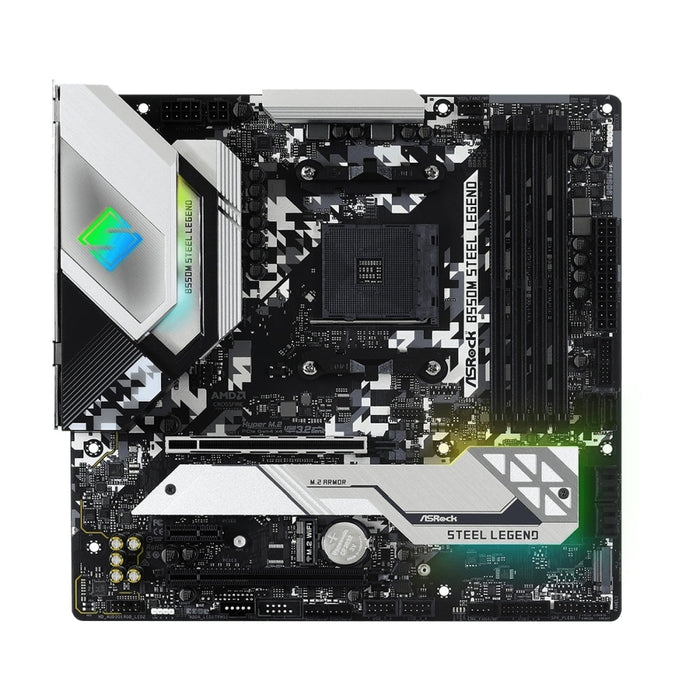

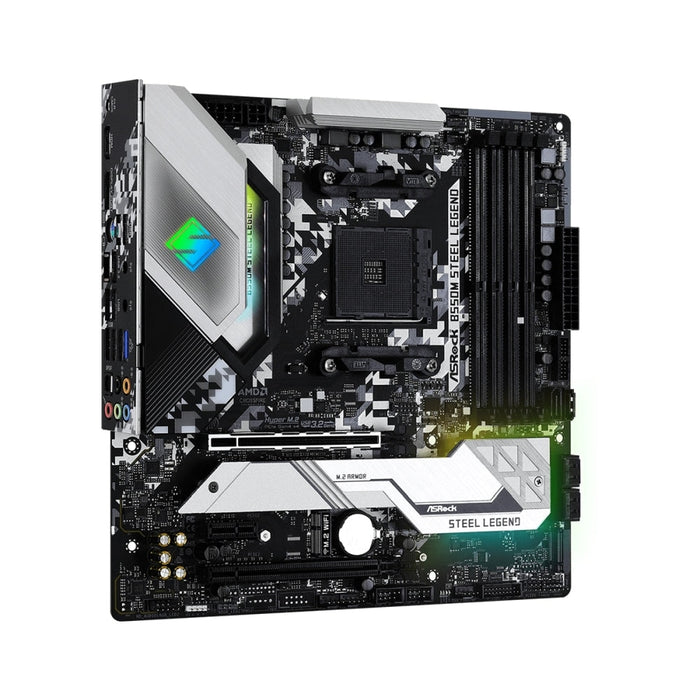

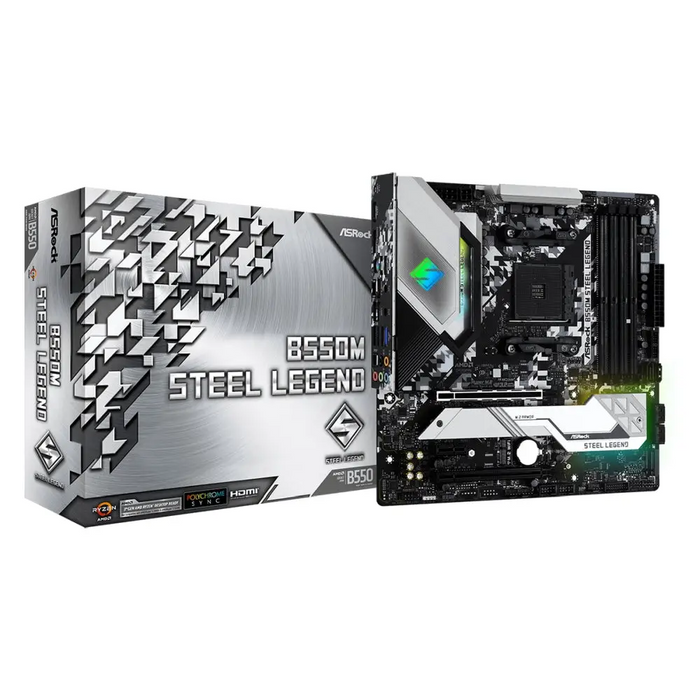

Дънна платка Asrock B550M Steel Legend

Motherboard, Asrock B550M Steel Legend

Asrock
SKU KXG0047457

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

The Asrock B550M is an amazing motherboard that has been specially designed to meet the high demands of any user who wants to improve their system's performance instantly and dramatically. It is designed in the most modern and innovative way to provide you with enhanced functionalities and features. This motherboard is the perfect choice for everyday users who need reliability and durability, as well as enthusiasts who demand performance at a higher level. The Asrock B550M provides you with a wide range of durable materials/components that guarantee you durability and reliable operation without annoying delays.

  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB , VDDP Voltage Multi-adjustment.
  • M.2 slot: 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s), 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module.
  • Audio: 7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Gold Audio Jacks, Nahimic Audio.
  • Wireless Network:-
  • Warranty: 36 months

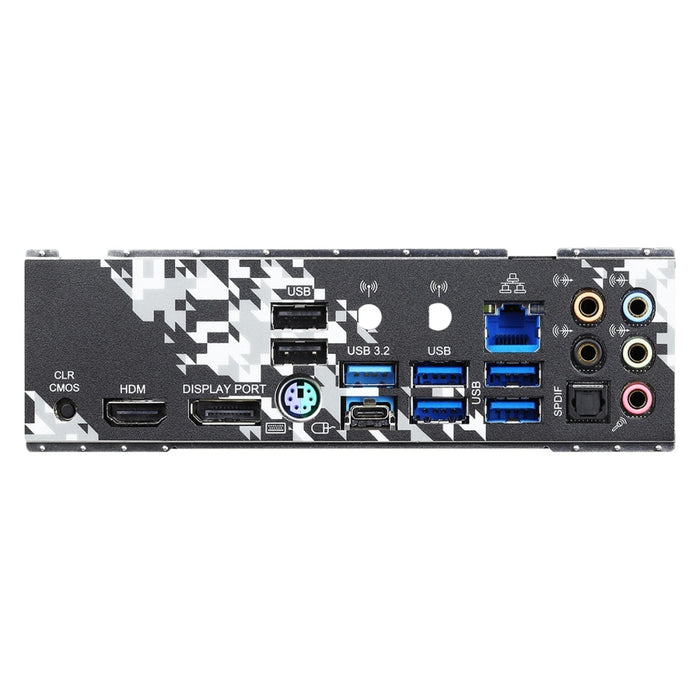

  • Interface: 2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED.
  • Connectors: 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector.
  • Network: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.
  • Operating system: Microsoft Windows 10 64-bit
  • Memory slots: 4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology.
  • Processor: AMD AM4 Ryzen
  • Series: Steel Legend
  • Slots: AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; - 1 x PCI Express 3.0 x1 Slot; -- Supports AMD Quad CrossFireX and CrossFireX; 15? Gold Contact in VGA PCIe Slot (PCIE1), 1 x M.2 Socket (Key E).
  • Software: ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC.
  • Special Features: ASRock USB 3.2 Gen2, ASRock Super Alloy, 2.5G LAN, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection (for all USB, Audio , LAN Ports), ASRock Live Update & APP Shop.
  • Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, 2oz Copper PCB.
  • Chipset: AMD B550
