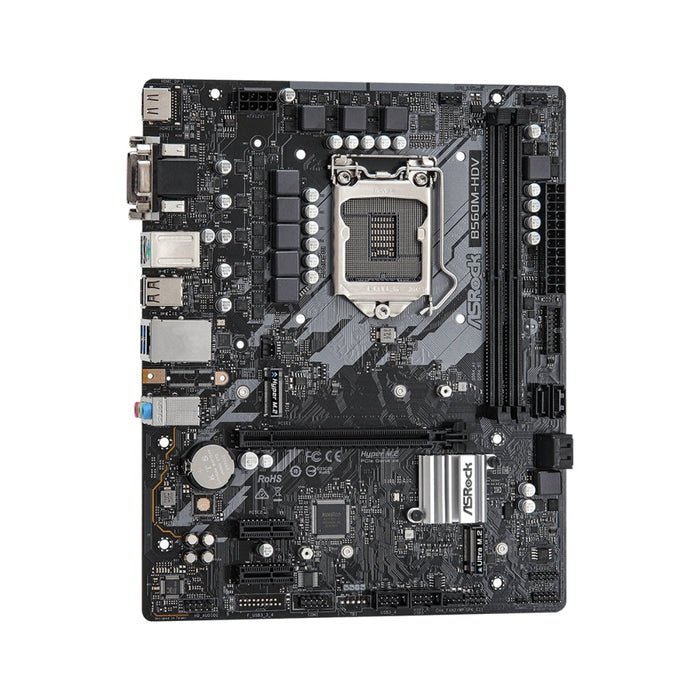

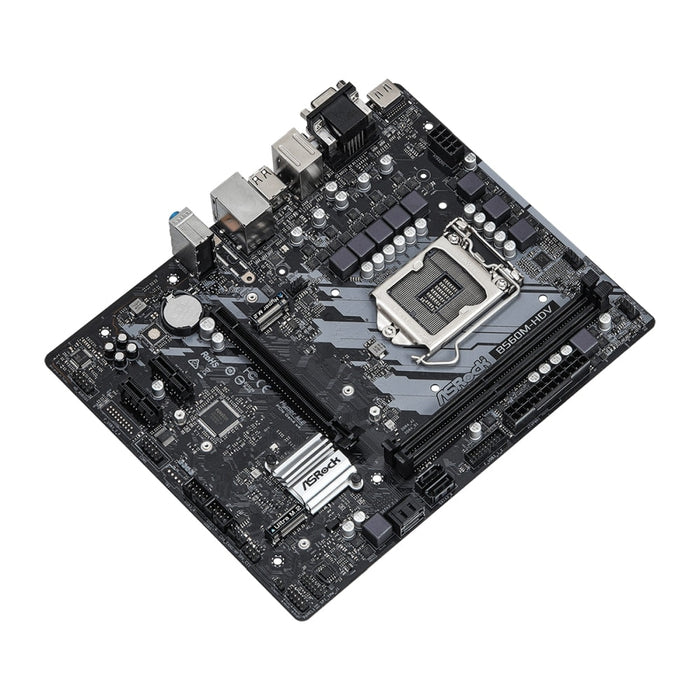

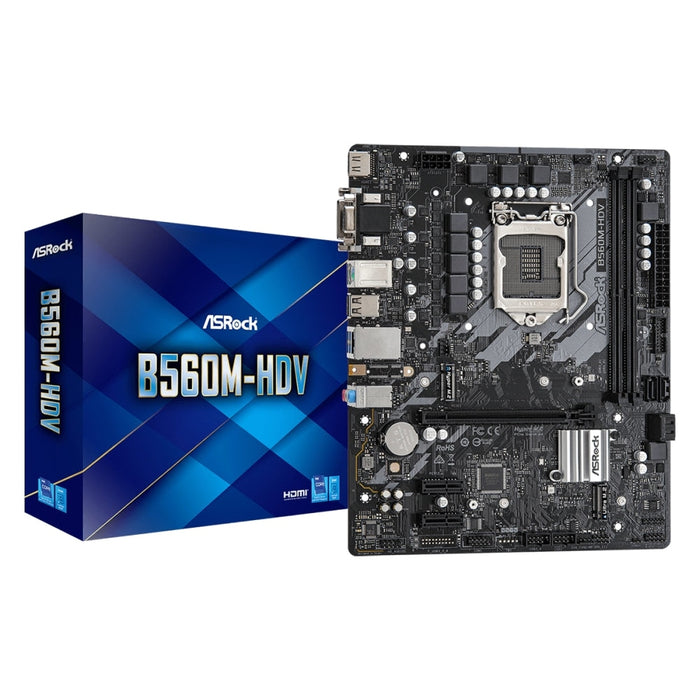

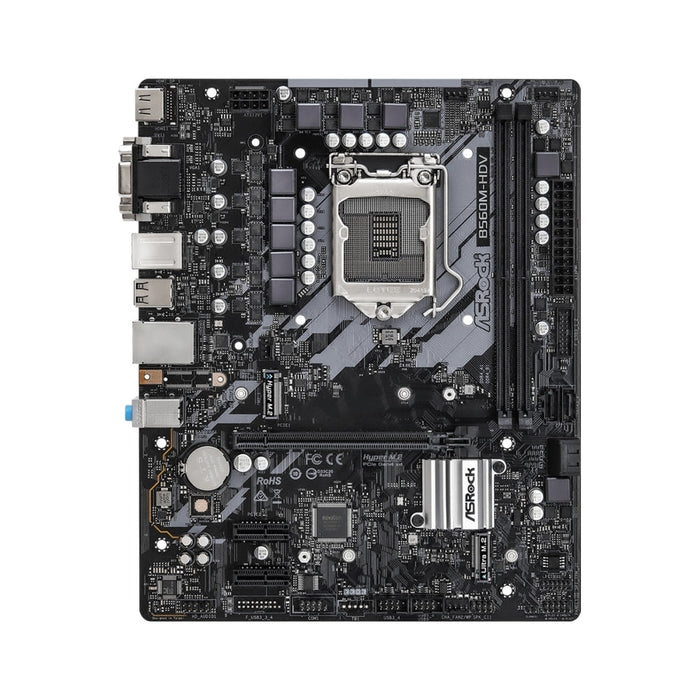

Дънна платка Asrock B560M - HDV R2.0

Motherboard, Asrock B560M-HDV R2.0

Asrock
SKU KXG0043890

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

ASRock's superior 50A power chokes effectively make the saturation current three times better, thereby providing increased motherboard Vcore voltage. Intel LAN offers the best network performance, low CPU load, advanced stability and is capable of delivering the ultimate networking experience to users! This motherboard is able to accommodate multiple M.2 storage devices, one of which can even support the next generation PCI Express 4.0 M.2 SSD, capable of performing twice the speed of the previous third generation, giving lightning fast data transfer.

  • BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment
  • M.2 slot: 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only 11th Gen); 1x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCIe module up to Gen3 x4 (32 Gb/s)
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection
  • Warranty: 36 months
  • Interface: 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 2 x USB 2.0 Ports (Supports ESD Protection); 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED; HD Audio Jacks: Line in/Front Speaker/Microphone
  • Connectors: 1x COM Port Header; 1x SPI TPM Header; 1x Chassis Intrusion and Speaker Header; 1x 24 pin ATX Power Connector; 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 2x USB 2.0 Headers; 1x USB 3.2 Gen1 Headers; 1x CPU Fan Connector (4-pin) max. 12W
  • Network: Gigabit LAN 10/100/1000 Mb/s; Giga PHY Intel I219V; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
  • Operating system: Microsoft Windows 10 64-bit
  • Memory Slots: 2 x DDR4 DIMM Slots; Max. capacity of system memory: 64GB; Dual Channel DDR4 Memory Technology; Supports Intel Extreme Memory Profile (XMP) 2.0; Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Processor: Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200); Digi Power design; 6 Power Phase design; Supports Intel Turbo Boost Max 3.0 Technology
  • Series: HDV
  • Slots: 11th Gen: 1x PCI Express 4.0 x16 Slot; 10th Gen: 1x PCI Express 3.0 x16 Slot; 2x PCI Express 3.0 x1 Slots
  • Software: ASRock Motherboard Utility (A-Tuning); ASRock XFast LAN
  • Special Features: ASRock Super Alloy; ASRock Hyper M.2 (PCIe Gen4x4); ASRock Full Spike Protection (for all USB, Audio, LAN Ports); ASRock Live Update & APP Shop
  • Form Factor: Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm; Solid Capacitor design
  • Chipset: Intel B560
