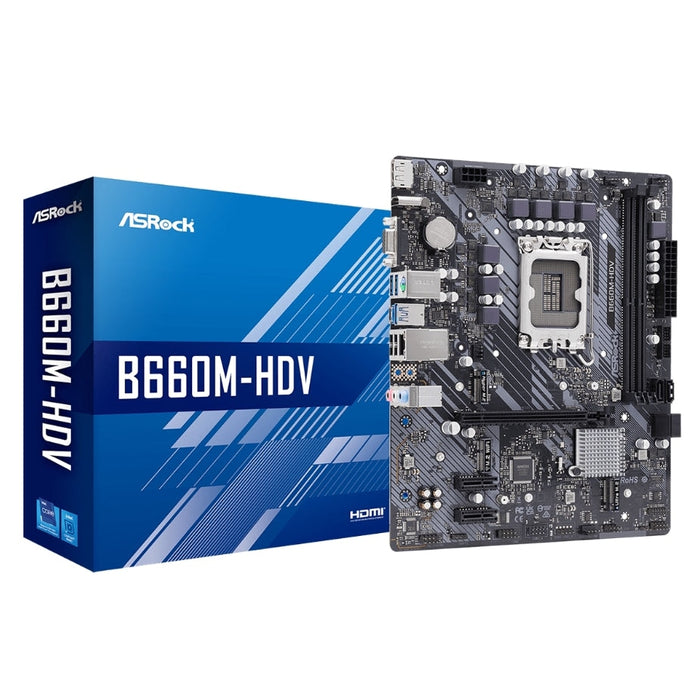

Дънна платка Asrock B660M - HDV

Motherboard, Asrock B660M-HDV

Asrock
SKU KXG0041432

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

  • BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
  • M.2 slot: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec); Supports Surge Protection
  • Warranty: 36 months
  • Interface: 2 x Antenna Mounting Points; PS/2 Mouse/Keyboard Port; D-Sub Port; HDMI port; DisplayPort 1.4; 3 USB 3.2 Gen1 Type-A Ports; USB 3.2 Gen1 Type-C Port; 2 USB 2.0 Ports; RJ-45 LAN Port with LED; HD Audio Jacks: Line in / Front Speaker / Microphone
  • Connectors: USB 3.2 Gen1 Header; 2 USB 2.0 headers; Front Panel Audio Connector; 8 pin 12V Power Connector; 24 pin ATX Power Connector; 2 Chassis/Water Pump Fan Connectors; CPU/Water Pump Fan Connector; COM Port Header; SPI TPM Header
  • Network: Gigabit LAN 10/100/1000 Mb/s; Giga PHY Intel I219V; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports UEFI PXE
  • Operating system: Microsoft Windows 10 64-bit/ 11 64-bit
  • Memory Slots: 2 x DDR4 DIMM Slots; Max. capacity of system memory: 64GB; Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC); Supports ECC UDIMM memory modules; Supports Intel Extreme Memory Profile
  • Processor: Intel 1700
  • Series: HDV
  • Slots: CPU: PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3), M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Software: ASRock Motherboard Utility (A-Tuning); ASRock XFast LAN
  • Special Features: ASRock Super Alloy, ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
  • Form Factor: Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
  • Chipset: Intel B660
