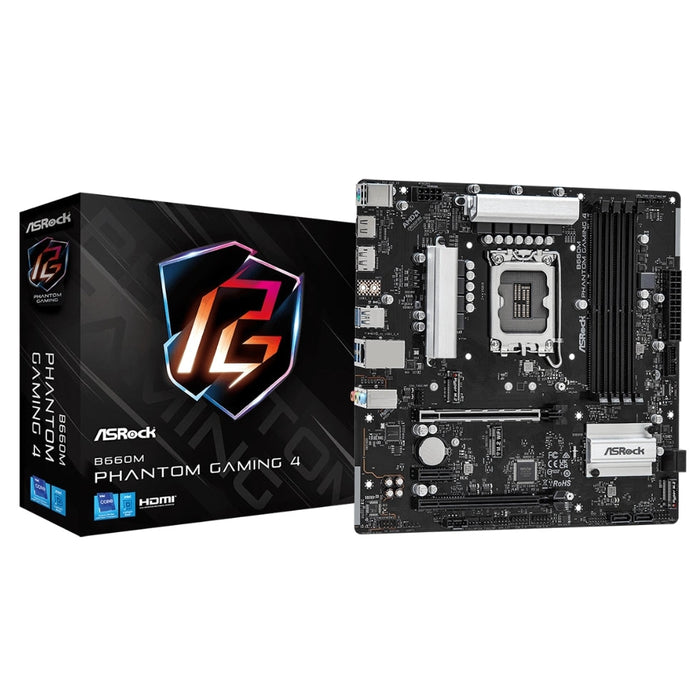

Дънна платка Asrock B660M PHANTOM GAMING 4

Motherboard, Asrock B660M PHANTOM GAMING 4

Asrock
SKU KXG0041433

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

  • BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment; SMBIOS 2.7 Support
  • M.2 slot: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection; Nahimic Audio
  • Warranty: 36 months
  • Interface: 3 x Antenna Mounting Points; PS/2 Mouse/Keyboard Port; HDMI port; DisplayPort 1.4; 4 x USB 3.2 Gen1 Ports; 2 x USB 2.0 Ports; RJ-45 LAN Port with LED; HD Audio Jacks: Line in / Front Speaker / Microphone
  • Connectors: 1 USB 3.2 Gen1 Header; 2 USB 2.0 headers; 1 Thunderbolt AIC Connector; Front Panel Audio Connector, 8 pin 12V Power Connector; 24 pin ATX Power Connector; 3 x Chassis/Water Pump Fan Connectors; CPU/Water Pump Fan Connector
  • Network: Gigabit LAN 10/100/1000 Mb/s; Giga PHY Intel I219V; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports UEFI PXE
  • Operating system: Microsoft Windows 10 64-bit/ 11 64-bit
  • Memory Slots: 4 x DDR4 DIMM Slots; Max. capacity of system memory: 128GB; Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, unbuffered memory up to 5333+(OC); Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Processor: Intel 1700
  • Series: Phantom Gaming
  • Slots: CPU: PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: PCIe 3.0 x16 Slot (PCIE3), supports x4 mode, PCIe 3.0 x1 Slot (PCIE2), M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
  • Software: ASRock Motherboard Utility (Phantom Gaming Tuning); ASRock XFast LAN
  • Special Features: ASRock Super Alloy, ASRock Intel 4-Layer Memory POOL, ASRock Steel Slot, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop
  • Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • Chipset: Intel B660
