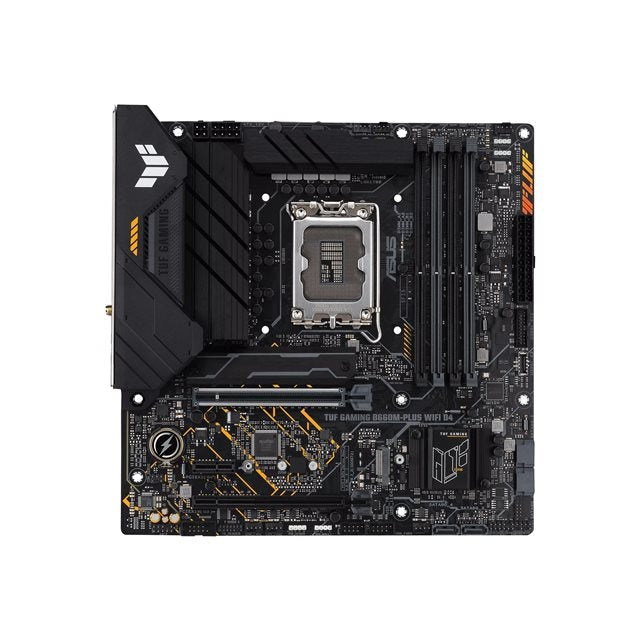

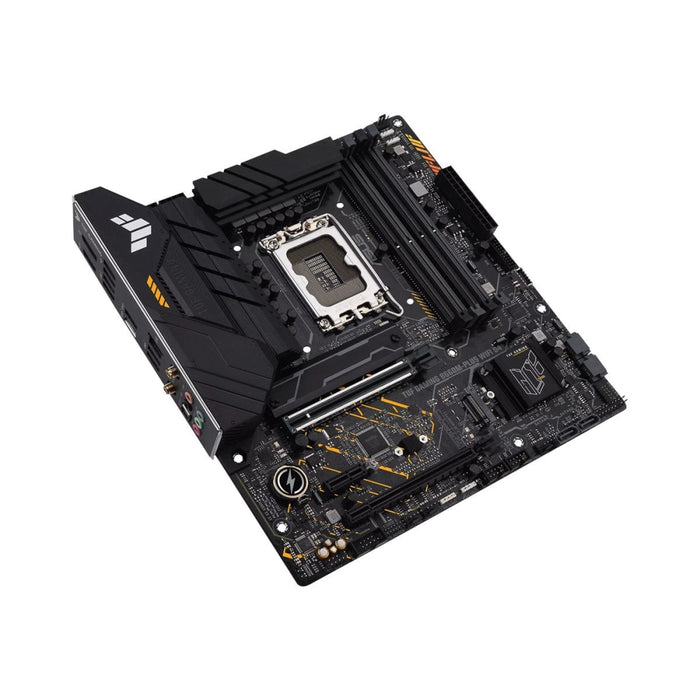

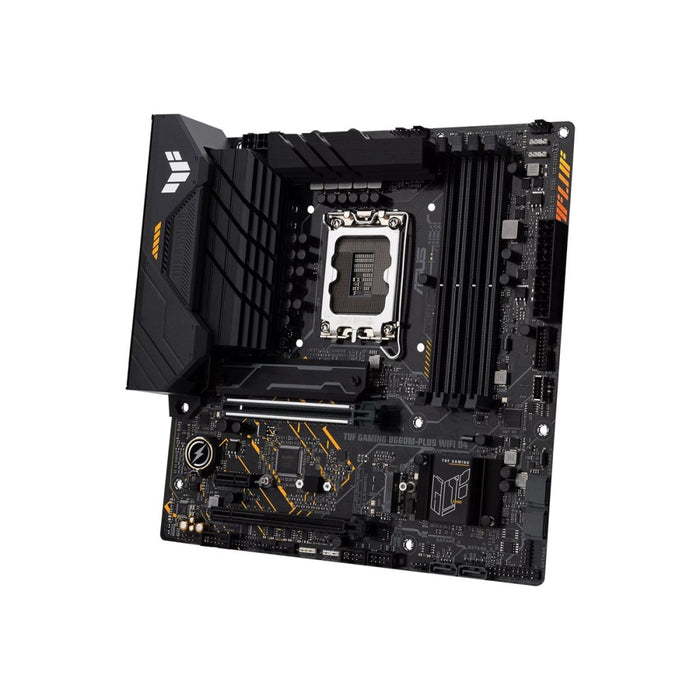

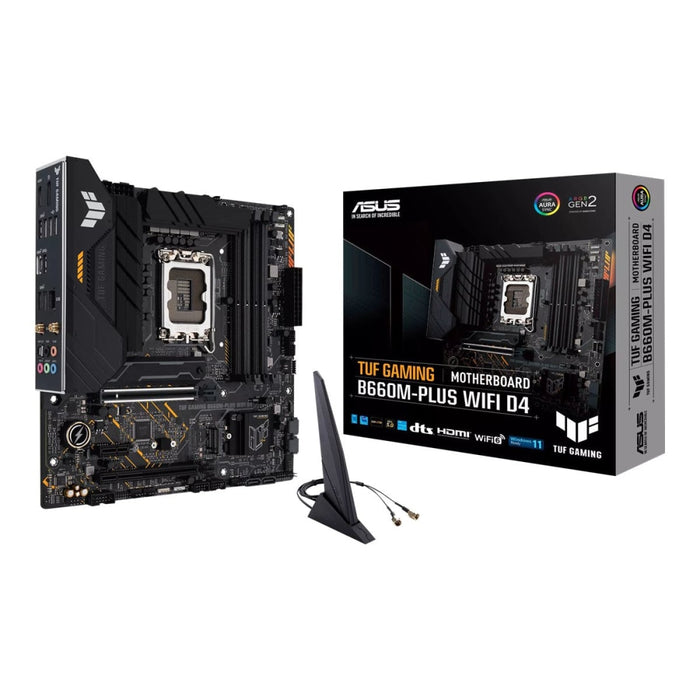

ASUS TUF GAMING B660M-PLUS WIFI D4 LGA 1700 1xDP 1xHDMI 1xPCle 5.0/4.0/3.0 x16 slot
| Description |
| ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the core elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an advanced power supply solution, and a comprehensive cooling system, this motherboard offers solid and stable performance for marathon gaming. Aesthetically, the TUF GAMING B660M-PLUS WIFI D4 bears the TUF Gaming logo and incorporates simple geometric elements to reflect the reliability and stability that defines the TUF Gaming series. |
| Product features |
-
Personal productivity
With improved power and comprehensive cooling options that power 12th Gen Intel Core processors, plus support for faster memory and storage memory, the TUF GAMING B660M series motherboards are the perfect foundation for your next high-core battle rig .
-
DrMOS
The onboard VRMs feature 10 1 DrMOS power stages that combine high- and low-frequency MOSFETs and drivers in a single package, delivering the power and efficiency that 12th generation Intel Core processors demand.
-
Six-layer PCB design
The multiple layers of the PCB optimize thermal management for critical components, providing more room to increase the speed of the processors beyond the standard speeds.
-
TUF chokes
Military-grade certified TUF chokes ensure stable CPU power, improving system stability.
-
TUF capacitors
Patented capacitors provide up to 20% wider temperature tolerance and five times longer life.
-
Increased VRM heatsink
The massive heatsink's extensive surface area covers the VRMs and chokes to improve heat dissipation.
-
Flexible M.2 heatsink
The TUF GAMING B660M series features a flexible M.2 heatsink to utilize one more M.2 slot and maintain the M.2 SSD's optimal operating temperature for consistent performance and reliability.
-
DDR4 OC 5333
Advanced trace routing design provides the latest Intel processors with improved access to memory bandwidth. ASUS OptiMem II technology carefully maps the memory signal paths through the different layers of the PCB to reduce the path distance and adds shielding zones that greatly reduce crossovers.
-
PCIe 5.0
12th Gen Intel processors bring PCIe 5.0 support to market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it reliable enough to handle data-intensive tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add-on cards, and backward compatibility with previous versions of PCI Express.
-
Front USB port
A full array of USB ports support high-end peripheral-laden platforms, including a front-panel USB 3.0.2 Gen 1 Type-C connector that provides data transfer speeds of up to 5 Gbps.
-
Assembling with confidence
The TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
-
Immersive gaming
TUF GAMING B660M series motherboards provide a high-performance gaming package with a long list of features that enhance your experiences, including ultra-fast networking for smoother online gameplay, flawless audio with positional signals for FPS games, and built-in RGB lighting that syncs with the attached accessories to help you create a personalized gaming atmosphere.
-
ESD Guards
ESD Guards extend component life while preventing ESD damage, providing protection for up to /- 10 kV air discharge and /- 6 kV contact discharge - significantly exceeding the relevant industry standards of /- 6 kV and /- 4 kV. Surface mount TVS diodes in a dual in-line package help protect the computer from voltage spikes.
-
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal coupling technology and premium surface-mount capacitors to improve throughput while protecting the motherboard from lightning strikes and static electricity.
-
DRAM overvoltage protection
Resettable fuses built into the motherboard prevent overcurrent and short circuit damage. This extends beyond I/O ports to DRAM to protect the life of your system and connected devices.
-

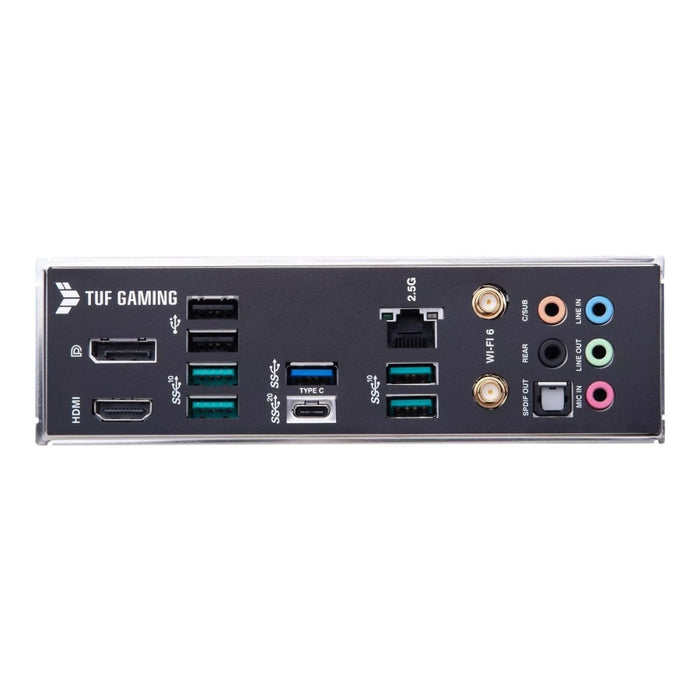

Stainless steel rear I/O panel
TUF GAMING motherboards feature a corrosion-resistant stainless steel rear I/O panel bonded with chromium oxide to provide a life that is three times longer than traditional panels. Thanks to this protective feature, TUF GAMING motherboards passed 72-hour salt mist tests, while other brands only passed 24-hour tests.
-
Intel Wi-Fi 6

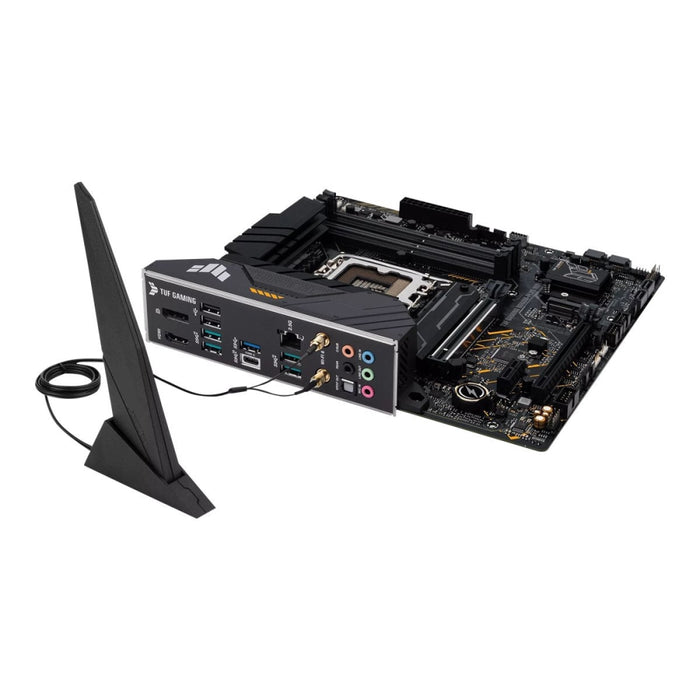

The Intel WiFi 6 module is compatible with the 802.11ax standard and increases the theoretical peak throughput to a whopping 2.4 Gbps. Perhaps more importantly for power users, it is optimized to work more efficiently on congested networks with highly competitive traffic. Connect your motherboard to the ASUS WiFi 6 routers to fully experience the network potential of WiFi 6. The WiFi antenna design has a four-sided positioning that allows for better signal reception and a magnetic base to attach the antenna to the top or side on the computer case.
-
Two-way AI noise cancellation
This powerful ASUS-exclusive program uses a huge deep learning database to reduce microphone background noise and incoming sound while preserving voices. Distracting keyboard rattles, mouse clicks, and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or chatting.
-
Shut out the competition
A well-tuned system deserves an aesthetic to match. The TUF Gaming B660M series features edge lighting to emphasize its rugged appearance, and the PCH heatsink now gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with various functional settings for the built-in LEDs as well as third-party strips that you can connect to the built-in RGB headers. And all of this can be synced with an ever-expanding portfolio of Aura-enabled hardware.
-
Addressable Gen 2 RGB header
The Addressable Gen 2 RGB Header can now detect the number of LEDs on the second generation addressable RGB devices, allowing the software to automatically adapt lighting effects to specific devices. The header also offers backwards compatibility with existing addressable RGB devices.
-
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for special tools. The design uses a simple locking mechanism to secure the M.2 SSD, elegantly eliminating the need for screws.
-
Q-LED
Built-in Q-LED troubleshooting lights give PC builders a quick indicator that confirms that key components - processor, RAM, graphics card, storage devices - are functioning normally during startup.
-
Armory Crate
Armory Crate is ASUS exclusive software that gives you centralized control of supported gaming products. From a single, intuitive interface, Armory Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. It also provides hardware information and settings control for a select and growing number of products, including keyboard and mouse preferences, Fan Xpert 2, and two-way AI noise cancellation, making it easy to customize the look and feel of your system. Armory Crate even has dedicated product listings and news sections to help you stay connected with the gaming community.
|
| Total |
| Product type |
Motherboard - micro ATX |
| Chipset type |
Intel B660 |
| Socket for processors |
Socket LGA1700 |
| Max. number of processors |
1 |
| Compatible processors |
(supports 12th generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM |
| maximum size |
128 GB |
| Technology |
DDR4 |
| Tire tread |
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (OC), 3333 MHz (OC), 3466 MHz (OC), 3733 MHz (OC), 3600 MHz (OC), 4000 MHz (OC), 4400 MHz (OC), 4266 MHz (OC), 4600 MHz (OC), 4800 MHz (OC), 3200 MHz, 5000 MHz (OC), 5066 MHz (OC), 5333 MHz (OC)) |
| Supported RAM integrity check |
Non-ECC |
| Logged or buffered |
Unbuffered |
| Functions |
Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio |
| Type |
HD Audio (8-channel) |
| Appropriate standards |
High Definition Audio |
| LAN |
| Network interfaces |
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Extension / Connectivity |
| Expansion slots |
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 4.0 x1 |
| Storage Locations |
SATA-600 -pins: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -pins: 2 x M.2 |
| RAID Features |
Intel Rapid Storage Technology |
| Interfaces |
1 x HDMI
1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2x2
2 x USB 2.0
4 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
1 x microphone - minijack
1 x audio line-in - minijack
1 x audio line out (rear) - mini jack
1 x audio line out (center/subwoofer) - minijack
1 x audio line output - minijack
1 x TOSLINK |
| Internal interfaces |
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 header
1 x USB-C Gen 1 header
1 x audio header
1 x Thunderbolt header
1 x serial - header |
| Power connectors |
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Functions |
| BIOS type |
AMI |
| BIOS functions |
UEFI BIOS, ASUS EZ Flash 3 |
| Sleep/wake |
Wake on LAN (WOL), wake on PME |
| Hardware Features |
Jack Reload, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Audio Jack Detection Technology, ASUS EPU (Energy Processing Unit) , Intel Turbo Boost Technology 2.0, ASUS DIGI VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2 , LANGuard, surge protection, ASUS SafeSlot, Intel Optane Memory Ready , ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, Armory Crate, 10 1 DrMOS power stages, M. 2 Q-Latch Windows 11 Compatible CPU Socket Lever Protector |
| Different |

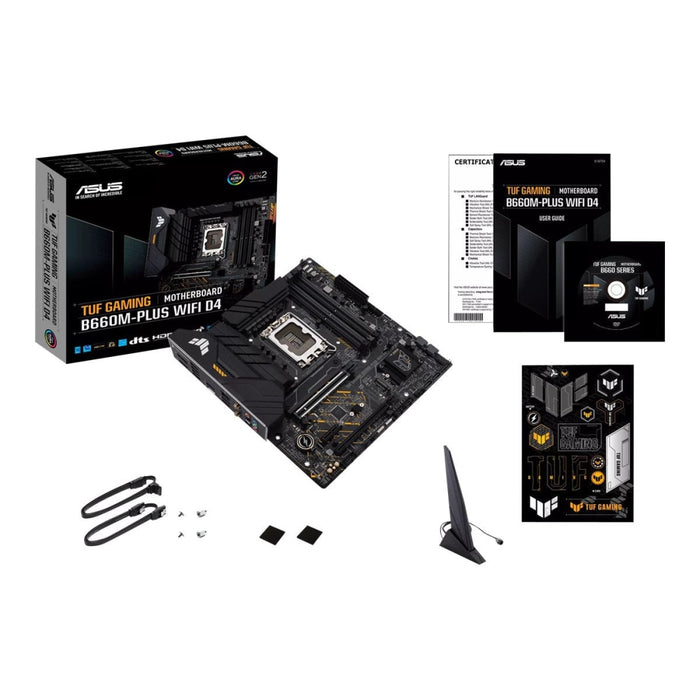

| Accessories included |
1 x M.2 screw, TUF stickers, ASUS Wi-Fi removable antenna, 1 x M.2 rubber pack |
| Cables included |
2 x Serial ATA cable |
| Software included |
Drivers |
