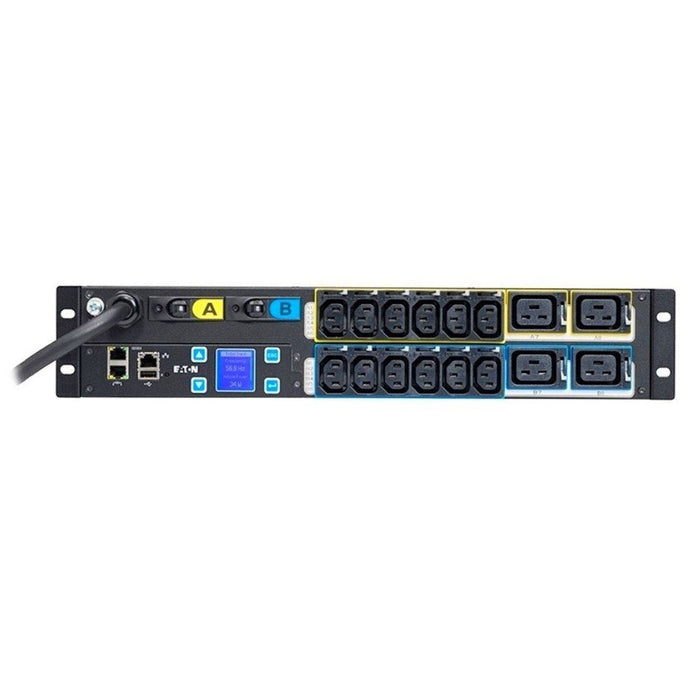

Филтър Eaton ePDU MI 2U (309 32A 1P) 12xC13 4xC19

Filter, Eaton ePDU MI 2U (309 32A 1P) 12xC13, 4xC19

EATON
SKU KXG0050869

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

  • Mounting: Button mounting on rear and sides, variable mounting bracket. 1U/2U form factor ePDUs can be mounted horizontally, vertically, or under a surface.
  • Number of outputs: 16
  • Number of phases: 1
  • Enter current, A: 32 A
  • Input voltage, V: 230 V
  • Input frequency, Hz: 50 Hz
  • Input terminal: IEC 60309
  • Warranty: 24 months
  • Others: Daisy Chain: 8 ePDUs
  • Cable length, m: 3 m
  • Protections: Circuit Breakers: 2 single pole
  • Max. power, kW: 7 kW
  • Dimensions (W, L, H), mm: 127 x 88.9 x 482.6 mm
  • Standards: CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010 , EN 55024:2010, EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 Part 6-4, RoHS 2011/65/EU, EN 50581 2012, REACH, WEEE, PEP, ISO 9001:2008 / ISO 14001
  • Pin type: 12x IEC-320-C13, 4x IEC-320-C19
  • Form factor: 2U
  • Color: Black
