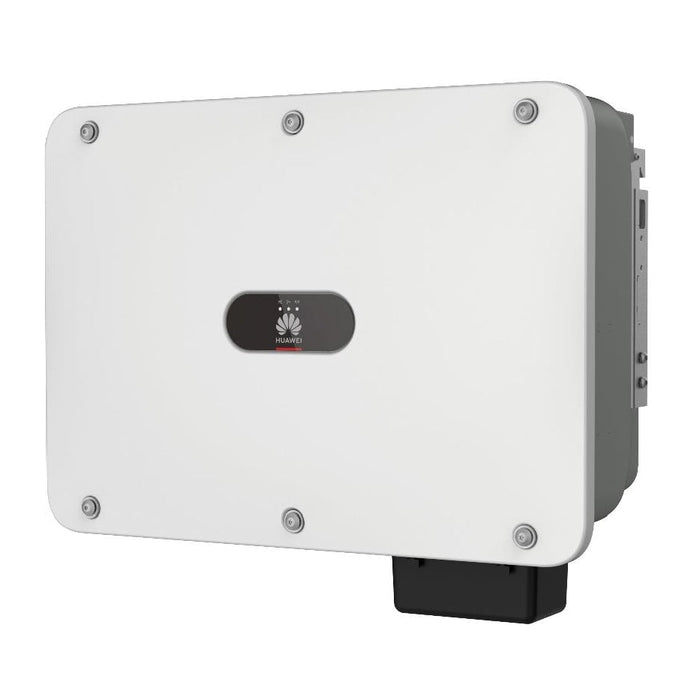

Photovoltaic panel inverter, Huawei Inverter SUN 2000-50KTL M3 (50 kW) Commercial Three Phase

Huawei
SKU KXG0040701

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

  • Types of protection: IP66, Input-side Disconnection Device, Anti-islanding Protection, AC Overcurrent Protection, DC Reverse-polarity Protection, PV-array String Fault Monitoring, DC/AC Surge Arrester Type II, DC Insulation Resistance Detection, Residual Current MonitoringUnit
  • Input voltage, V: Max. input voltage: 1100 V, Rated input voltage: 600 V, MPPT Operating voltage range: 200 V ~ 1000 V, Number of Inputs: 8, Number of MPP Trackers: 4
  • Warranty: 60 months
  • Operating humidity range: 0% RH ~ 100% RH
  • Efficiency: 98.5% max. efficiency
  • Ex. power, VA: 55,000 VA Max. AC apparent power
  • Ex. power, W: 50,000 W Rated AC Active Power, 55,000 W Max. AC Active Power (cosf=1)
  • Ex. current, A: Rated Output Current: 72.2 A @ 400 Vac, 60.1 A @ 480 Vac; Max. Output Current: 79.8 A @ 400 Vac, 66.5 A @ 480 Vac
  • Output voltage, V: Rated output voltage: 400 Vac/ 480 Vac, 3W+(N) + PE
  • Indicators: LED indicators
  • Interface: RS485, Bluetooth, Monitoring BUS (MBUS), WLAN/Ethernet via Smart Dongle - WLAN-FE (Optional), 4G/3G/2G via Smart Dongle-4G (Optional)
  • Operating temperature: -25 ~ 60 °C
  • Dimensions (W, L, H), mm: 640 x 530 x 270 mm
  • Safety: EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
  • Standards: IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, PO 12.3 , RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, DEWA
  • Weight, kg: 49 kg
  • Cooling type: Smart Air Cooling
  • Connection type: Three phase
  • Color: White
  • Frequency, Hz: Rated AC grid frequency: 50 Hz / 60 Hz
