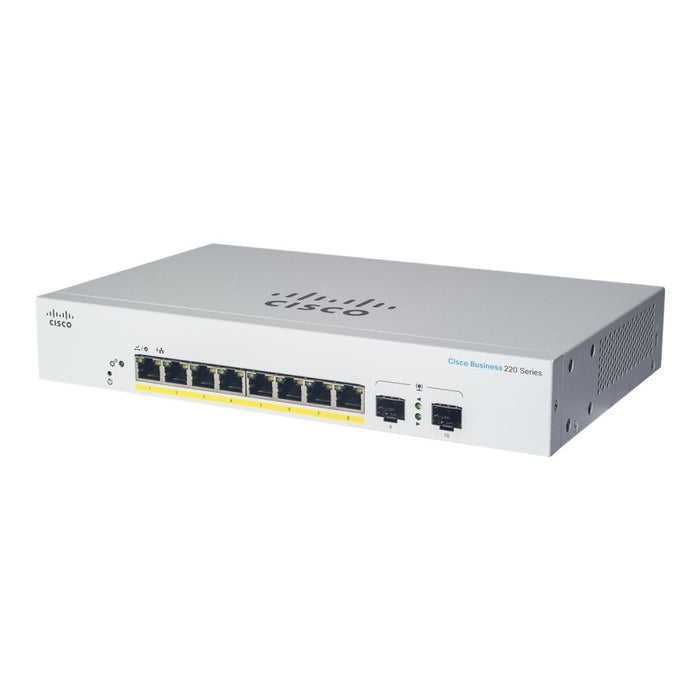

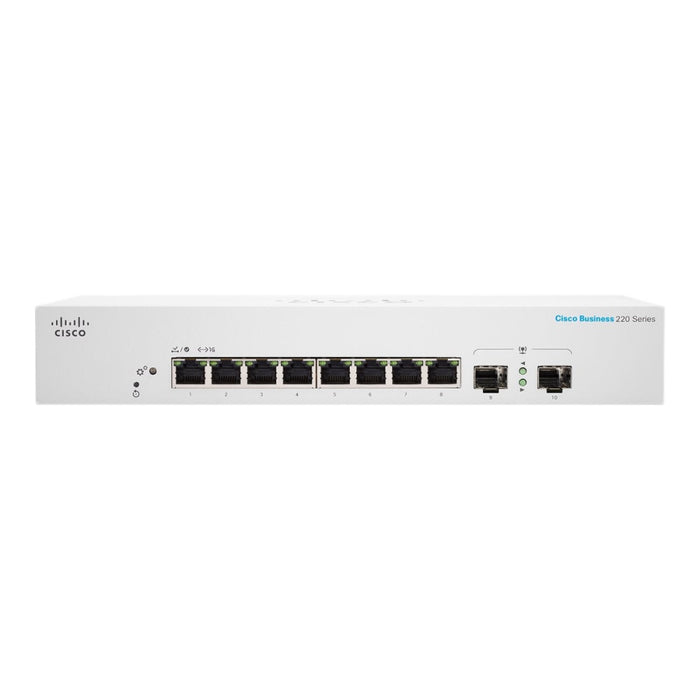

CISCO Business Switching CBS220 Smart 8-port Gigabit 2x1G SFP uplink external power supply
| Marketing description |
| The Cisco Business CBS220-8T-E-2G Switch is a simple and affordable smart switch for a business-class network. The CBS220 series bridges the gap between the affordability of the unmanaged device and the ease of use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches provide a solid business network. |
| Product features |
-
COMPUTER PORTS
8-Ports 10/100/1000 2 x 1G SFP
-
FLEXIBLE
Expanded portfolio provides maximum flexibility from 8 to 48 ports and Power over Ethernet (PoE) combinations
-
IMAGINED
An intuitive in-box user interface, mobile app, and Cisco Business Dashboard simplify network operations and automate lifecycle management
-
PROTECTION
Integrated with IEEE 802.1X to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, and access control lists (ACLs) protect the network from unauthorized users
-
Innovative design
Sleek and compact design, ideal for installation outside a cable cabinet, for example in retail shops, open-plan offices, and classrooms
|
Total |
| Device type |
Switch - 10 ports - smart |
| Body type |
Rack mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
8 x 10/100/1000 2 x Gigabit SFP (uplink) |
| Performance |
Forwarding performance (packet size 64 bytes): 14.88 Mpps
Switching capacity: 20 Gbps |
| Capacity |
MSTP instances: 16
Supported VLANs: 256
ACL Rules: Buffer Capacity (MB): 4.1 |
| MAC address table size |
8192 records |
| Jumbo Frame Support |
9216 bytes |
| Routing Protocol |
IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Control Protocol |
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS, RADIUS |
| Encryption algorithm |
SSL |
| Authentication method |
Secure Shell (SSH), RADIUS, TACACS, TACACS , Secure Shell v.2 (SSH2) |
| Figures |
BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, mirror ports, DiffServ support, MAC address filtering, Broadcast Storm control, Multicast Storm control, Access Control List (ACL) support , Quality of Service (QoS), Cable Diagnostics, Fanless, LACP Support, LLDP Support, Port Security, DHCP Client, Energy Efficient Ethernet, Management Information Base (MIB), Dual Firmware Images, Protocol for Neighbor Discovery (NDP), Common VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown storm control, BPDU Guard, Cisco Discovery Protocol (CDP), detection of duplicate addresses (DAD), TCP support, automatic voice VLAN, automatic media dependent interface crossover (MDIX) |
| Appropriate standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM |
256 MB |
| Flash Memory |
64 MB |
| Status indicators |
System, Connection/Activity/Speed |
| Extension / Connectivity |
| Interfaces |
8 x 10/100/1000 Base-T RJ-45
2 x 1000Base-X SFP uplinks |
| Power supply |
| Charging device |
External power adapter |
| Tension is required |
AC 100-240 V (50/60 Hz) |
| Energy consumption at work |
5.9 watts |
| Different |
| Rack mounting kit |
Included |
| MTBF |
1,489,560 hours |
| Appropriate standards |
C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localization |
United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area |
| Dimensions and weight |
| Width |
27.9 cm |
| Depth |
17 cm |
| Height |
4.4 cm |
| Weight |
1.16 kg |
| Manufacturer's warranty |
| Service and maintenance |
Limited Warranty - Replacement - 3 Years - Response Time: Next Business Day |
| Environmental parameters |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
50 °C |
| Operating humidity range |
10 - 90% (non-condensing) |
| Minimum storage temperature |
-20 °C |
| Maximum storage temperature |
70 °C |
| Storage humidity range |
10 - 90% (non-condensing) |
